For Dodge Ram Van 1996-1997 model year.

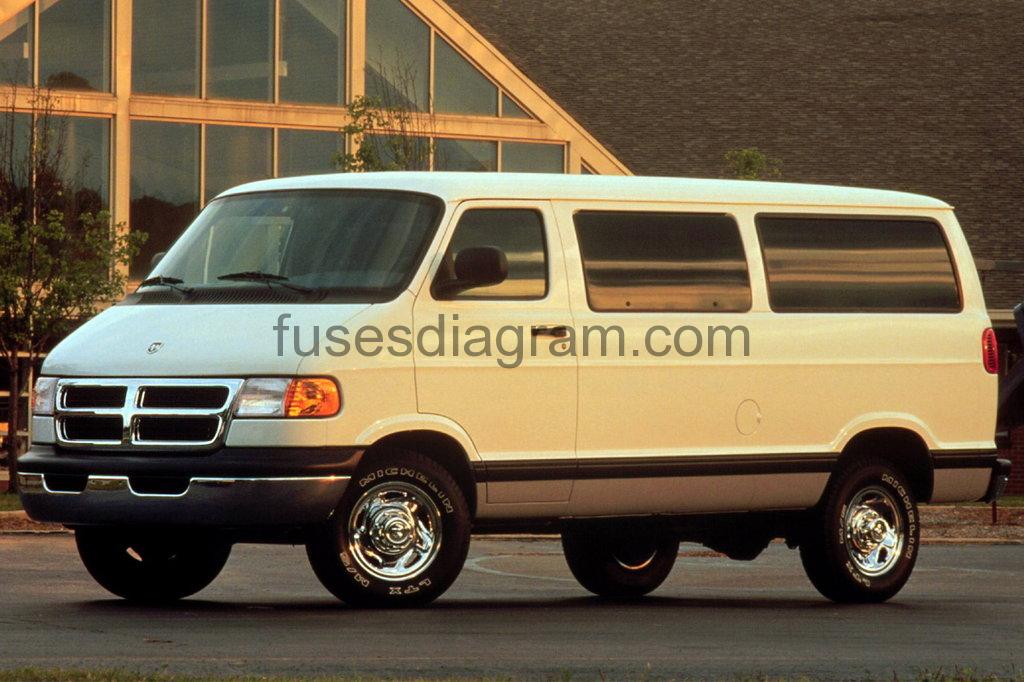

Dodge Ram Van (B1500, B2500, B3500)
Cigarette lighter fuse – Fuse box in passenger compartment – Fuse №9/15A) |
MENU
Fuse box in passenger compartment
Fuse box in engine compartment
Buzzers, relays & timers location
Fuse box in passenger compartment.
The junction block is under the glove box liner.
fuse box diagram (1996-1997).
Assignment of the fuses (1996-1997).
| Fuse (Amp) | Application |
|---|---|
| 1 (10) | Airbag Control Module |
| 2 (20) | Radio Speaker Relay & Filter Choke |
| 3 (20) | Hazard Flashers, Raido & S104 |
| 4 | Not Used |
| 5 (5) | ABS Controller, Lamp Relay & Power Relay |
| 6 (10) | Rear Window Defogger Switch & Park/Neutral Position Switch |
| 7 (30) | A/C Heater Control Switch, Blower Motor Switch, Rear Heater Relay Without A/C & Rear A/C Heater Realy With A/C |
| 8/Circuit Breaker (30) | Right/Left Power Windows Switch |
| 9 (15) | Cigar Lighter |
| 10 (20) | Intermittent Wiper Motor, Intermittent Wiper Control Module & Intermittent Wiper Switch |
| 11 (10) | Radio |
| 12 (20) | Van Conversion Accessory Power Relay, Turn Signal Flasher & Rear Wheel Anti-Lock Brake Control Module (Cavity 3) |
| 13 (20) | Horn & Speakers |
| 14 (20) | Headlamp Switch, Outside Lamp (Park, Tail & Sidemarker) & Clock Display |
| 15 (20) | Stop Lamp Switch, Buzzer Module, Rear Wheel Anti-Lock Brake Control Module (Cavity 9), Rear Heater Relay Without A/C & Rear A/C Heater Relay With A/C |
| 16/Circuit Breaker (30) | Power Door Lock Switches, Power Door Lock Module & Power Seat Switch |
| 17 (5) | Overdrive Switch, Buzzer Module, Instrument Cluster, Message Center & Power Door Lock Module |
| 18 (10) | Airbag Control Module (Cavity 1) & Instrument Cluster |
| 19 (10) | A/C Compressor Clutch Relay, Powertrain Control Module (Cavity A2), Electronic Transmission Relay (V8), TCC Solenoid (V6), Duty Cycle EVAP/Purge Solenoid, A/C Cycling Switch, DRL Module, Automatic Shut Down Relay & Fuel Pump Relay |
| 20 (3) | Rear Window Defogger Switch, Heater Control Lamp Without A/C, A/C Heater Control Lamp With A/C, Cigar Lighter Illumination Lamp, Rear Heater Control Lamp Without A/C, Rear A/C Control Lamp With A/C, |
Fuse box in engine compartment.
The power distribution center is located under the hood near the battery.
fuse box diagram (1996-1997).
Assignment of the fuses
| Fuse (Amp) | Application |
|---|---|
| 1/2 (60) | Van Conversion Battery Feed |
| 3 (20) | Fuse Block |
| 4 (50) | Ignition Switch & Blower Motor Relay |
| 5 (20) | Horn Relay, High & Low Note Horn & Switch , Engine Starter Motor Relay, Engine Starter Motor, Park/Neutral Position Switch, Powertrain Control Module A/C Compressor Clutch Relay & Clutch |
| 6 (30) | Junction Block |
| 7 (40) | ABS Power Relay, Controller Anti-Lock Brake (Cavity 34) & Front/Rear Hydraulic Valve |
| 8 (30) | Electronic Transmission Relay, Powertrain Control Module, Fuel Injectors 1-8, Injection Coil, Upstream & Downstream Heated Oxygen Sensors & Ignition Coil, Automatic Shut Down Relay, Fuel Pump Relay, Fuel Pump Module |
| 9/10 (60) | Van Conversion Accessory Power Relay |
| 11 (40) | Junction Block |
| 12 (40) | Rear Window Defogger Switch |
| 13 (20) | Stop Lamp Switch |
| 14 (40) | Headlamp Switch & Junction Block |
| 15 (40) | Ignition Switch |
| 16 (20) | Hazard Flasher |
| 19/20 (15) | Underhood Lamp, Data Link Connector Glove Box Lamp, Interior Lamp Defeat Switch, Power Mirror Switch, & Radio |
| 21/22 (120) | Generator |
Buzzers, relays & timers location.
| Component | Component Location |
|---|---|
| ABS Lamp Relay | In power distribution center, radiator front support. |
| ABS Power Relay | In power distribution center, radiator front support. |
| A/C Compressor Clutch Relay | In power distribution center, radiator front support. |
| Automatic Shutdown Relay | In power distribution center, radiator front support. |
| Automatic Shutdown (ASD) Relay (CNG) | In power distribution center, radiator front support. See Fig. 11 . |
| Auxiliary A/C-Heater Relay | Behind center of dash. See Fig. 9 . |
| Electronic Transmission Relay | Dash panel, near brake master cylinder. See Fig. 5 . |
| Engine Starter Motor Relay | In power distribution center, radiator front support. |
| Fuel Pump Relay | In power distribution center, radiator front support. |
| Hazard Flasher | Behind glove box bin, on right cowl inner panel. |
| High Pressure Fuel Shut-Off Solenoid Relay (CNG) | In power distribution center, radiator front support. See Fig. 11 . |
| Horn Relay | In power distribution center, radiator front support. |
| Rear Window Defogger Timer | In rear window defogger switch. |
| Time Delay Relay | Behind right side of dash, on relay block. |
| Turn Signal Flasher | Behind glove box bin, on right cowl inner panel. |
| Van Conversion Accessory Relay | Near rear of headlamp switch. |
